CMS SOLUTION

Civil defense warning solution

Warning Control System

Overview

The Warning Control System aims to protect human lives and property through propagating prompt and accurate warnings to public. It is a system that activates the siren and broadcasts the warning to minimize casualty and damage in case of disaster or possibility of occurrence.

Necessity
  • To protect human lives and property through prompt warning in case of national emergency or disaster
  • Needs for total warning management due to the expansion of disaster scale and increase of complex disaster
  • 24/7 warning system
System configuration
System Type
City-Province Warning Control System


Warning Control System(Dual system operation)
Warning Control System(Dual system operation)
  • Warning (Drill/Real/Attack/Watch/Chemical/Watch)
  • Disaster Warning(Drill/Real/Hazardous/Watch/Clear)
  • Regional-selective(Overall/City/Group/Individual)
  • Network-selective(Wired/Satellite)
  • Broadcasting(Microphone/Recorded Message/TTS/Recorded Broadcasting)

Broadcasting Control System (Dual system operation)
Broadcasting Control System (Dual system operation)
  • Warning (Drill/Real/Attack/Watch/Chemical/Watch)
  • Disaster Warning(Drill/Real/Hazardous/Watch/Clear)
  • Broadcasting station & Major agency (Overall/City/Group/Individual)
  • Network-selective(Wired/Satellite)
  • Broadcasting(Microphone/Radio voice/TV Caption)

Main Control System
Main Control System
  • Checking Warning Result(Warning terminal/Broadcasting terminal/Major agency)
  • Remote control on Warning terminal (Reset, etc)
  • Monitoring device status of Warning terminal
  • Electronic board display, Event management, Data save
  • Authorization digital key management (Central/Province/City/Terminal)

Database System (DB)
Database System (DB)
  • Result query of Warning & Broadcasting Drill
  • Query Error history
  • Repair status of damaged device
  • Analysis Report

Operating Network Management System
Operating Network Management System
  • Web-based search program at Central Warning Control Center
  • Dual-control unit management program
  • DSU network monitoring program

Integrated management system of control terminal
Integrated management system of control terminal
  • Collect/Manage/Display of command information & device status
  • Warning terminal management (Location/Status/Command/Registration)
  • Display & Query of device error
  • Log management of Warning terminal
  • Data export in excel & Print out of registration info of warning terminal

Integrated Backup System
Integrated Backup System
  • Transition and recovery system when error occurs in control system
  • Target: Warning Control System, Broadcasting Control System, Main Control System

GIS Situation Management System
GIS Situation Management System
  • GIS-based Warning Command (Radius designation/Latitude&Longitude input)
  • Display of Warning result (Graph/Aggregation by province & City)
  • Status & detail of warning terminal (Type/IP/Manager/Audible population/etc)
  • Audible range & audible rate (Province/City)
  • Data export in excel & Print out of registration info of warning terminal

City-county Warning Control System


Disaster Warning System
Disaster Warning System
  • Civil Defense Warning (Drill/Real/Attack/Watch/Chemical/Clear)
  • Disaster Warning(Drill/Real/Hazardous/Watch/Clear)
  • Regional-selective(Overall/Town/Group/Individual)
  • Network-selective(Wired/Satellite)
  • Broadcasting(Microphone/Recorded Message/TTS/Recorded Broadcasting)

Disaster Operating System
Disaster Operating System
  • Checking Warning Result
  • Remote control on Warning terminal (Reset, etc)
  • Monitoring device status of Warning terminal
  • Electronic board display, Event management, Data save

Multi Warning Control System


Multi Warning Command Unit
Multi Warning Command Unit
  • Civil Defense Warning (Drill/Real/Attack/Watch/Chemical/Clear)
  • Town-level Warning (Drill/Real/Broadcasting/Clear)
  • Regional-selective(Overall/Individual)
  • Microphone Broadcasting
  • ONE-TOUCH Siren Warning for Emergency

Multi Access Device
Multi Access Device
  • Switching between Warning terminal and Data&Audio
  • Check network status of warning terminal on display
  • CPU : 32BIT RISC(CORTEX-M3) or higher
  • MEMORY : FLASH(256KBYTE), S-RAM(48KBYTE) or higher
  • Network: RS-232(SERIAL)
  • Power: DC 48V

West-coast Multi-purpose Warning System

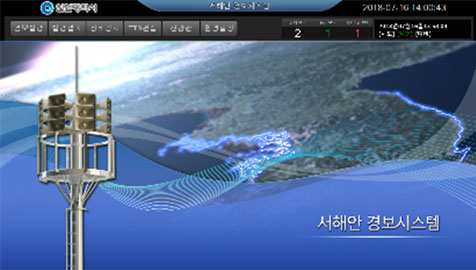

West coast Warning System
West coast Warning System
  • Warning (Drill/Real/Attack/Watch/Chemical/Clear)
  • Disaster Warning(Drill/Real/Hazardous/Watch/Clear)
  • Regional-selective(Overall/Group/Individual)
  • Network-selective(Wired/Satellite)
  • Broadcasting(Microphone/Recorded Message/TTS/Recorded Broadcasting)

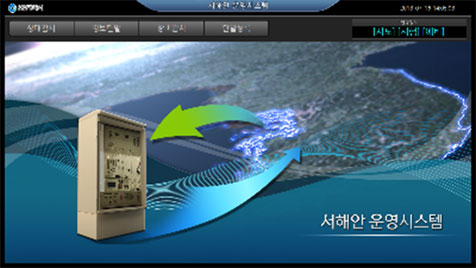

West coast Operating System
West coast Operating System
  • Checking Warning Result
  • Remote control on Warning terminal (Reset, etc)
  • Monitoring device status of Warning terminal
