RMS SOLUTION

Radio Spectrum Management Solution

Product

Convergency Radio measurement / Direction finding receiver
AMD720
  • Model Name: AMD720
  • Frequency range: 9KHZ ~ 7.5GHZ
  • Instantaneous Bandwidth: 50MHZ (High Speed / More than 15GHZ / sec, Precision measurement)
  • VME CARD-TYPE type for easy maintenance
  • Digital Radio Voice Demodulation and WCDMA, LTE Base Station Signal Analysis
  • Interference monitoring by introducing masking techniques at key management frequencies (aviation, sea, etc.)
  • Real-time alarm function in case of events such as jamming, interference, illegal frequency and radio wave quality violation
  • Weak signal sensing technology and cumulative spectrum measurement
  • Data linkage, linkage between other systems
Wideband Radio Direction Finding Receiver
MD6672
  • Model Name: MD6672
  • Frequency range: 20MHZ ~ 6GHZ
  • instantaneous bandwidth: 25MHZ
  • Able to operates wideband and channel spacing and scan
  • Fast scan rate and specific frequency scan
  • Use of measurement methods in accordance with the ITU-R Recommendation
  • Discovery of emission detection and execution of high accuracy DF
Semi-Fixed Radio measurement receiver
SFMS
  • Model Name: MD6672
  • Frequency range: 20MHZ ~ 6GHZ
  • instantaneous bandwidth: 25MHZ
  • Able to operates wideband and channel spacing and scan
  • Fast scan rate and specific frequency scan
  • Use of measurement methods in accordance with the ITU-R Recommendation
  • Discovery of emission detection and execution of high accuracy DF
HF Radio
Measurement Antenna
  • HF Radio Measurement Antenna (AD-9K030M)
  • Frequency Range: 9KHZ ~ 30GHZ
  • Antenna Type: Omni-Directional Active Rod (Monopole)
  • Ultra-compact antenna with excellent wideband characteristics (Rod length 1Meter)

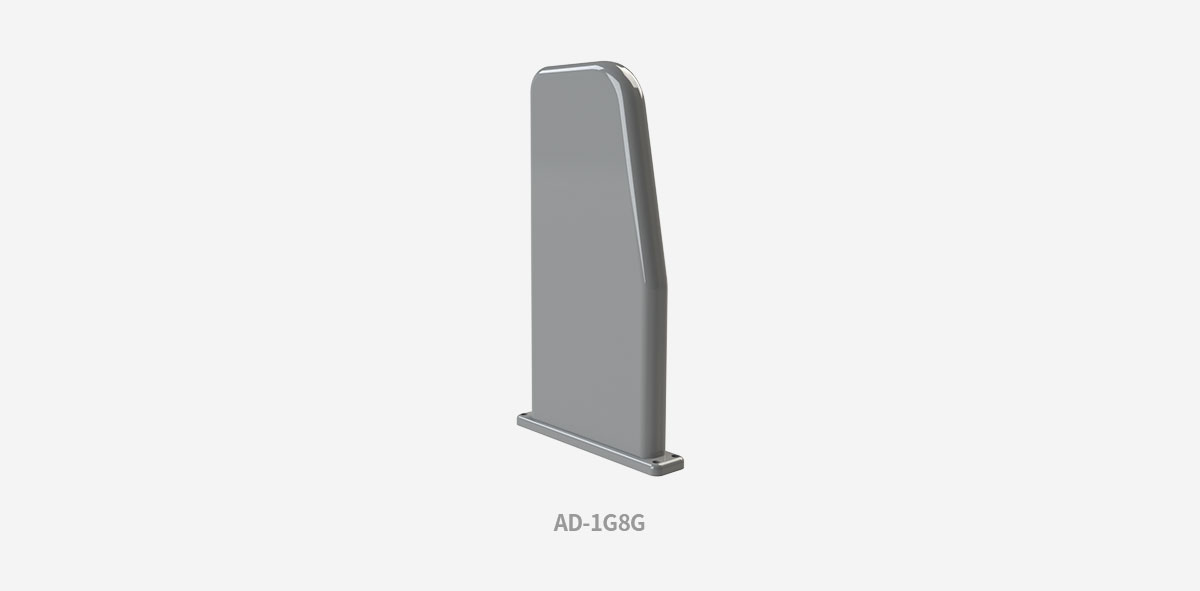

V / UHF radio frequency measuring antenna (AD-1G8G)
  • V / UHF radio frequency measuring antenna (AD-1G8G)
  • HzFrequency Range: 1Ghz ~ 7.5Ghz
  • Antenna type: Omni-directional dipole
  • Rugged radome suitable for external environment
  • According to mode (Passive / Active) selection operation enhanced linearity over a wide range of receive power
Direction Finding Antenna (ADDF-8G4B)
  • Direction Finding Antenna (ADDF-8G4B)
  • Frequency Range: 200Mhz ~ 7.5Ghz
  • Instantaneous Bandwidth: 50Mhz
  • Array: 4 stage 5 array
  • Antenna type: Omni-directional dipole
  • Low propagation loss and strong internal radome protects internal devices
  • Minimum radio interference by applying internal non-conductor material
Latest SW Functions

Cumulative Spectrum Analysis

Digital Signal measurement

Hybrid DF

Wideband Direction Finding

Spectrum Quality Analysis

Coverage Measurement

Spectrum Mask Measurement

Spurious Measurement

Noise level Inspection

Illegal station detection

Frequency usage investigation

Wide Spectrum Measurement

More
Radio Spectrum DF & Linked DF
COMINT, FISINT receiver
  • COMINT, FISINT receiver (measurement and direction finding)
  • Wideband Digital Receiver (20MHz ~ 3GHz)
  • Digital I/O Data Output
  • SELF-TEST function
  • 1GBPS LAN Interface (I/O)
  • FAST LOCK TIME (50USEC MAX)
  • Compact design (200mm x 233 mm x 20mm, 13Kg)
WDC
  • WDC (Wide band Converter)
  • Frequency Downconversion: 9Khz ~ 600Mhz / Bandwidth: Up to 20Mhz
  • Operation Mode: Bypass, LNA, Low Distortion
  • Self-Test Function
  • YIG Oscillator / -110dBc / Hz @ 5GHz
  • VME interface
Agile Down
converter Module
  • Agile Down converter Module
  • Frequency Downconversion: 20Mhz ~ 500Mhz / Bandwidth: Up to 60Mhz (20MHz x 3)
  • Operation Mode: Bypass, LNA, Low Distortion
  • Self-Test Function
  • Fast Lock Time (50usec max.)
  • VME interface
  • Compact Design: VME 1 Slot
Outdoor Cooling Rack
AD-R102
  • Model Name: AD-R102
  • 19 '' inch standard design ensures compatibility with all equipment
  • System is completely protected from water and dust
  • Outside of rack is powder coating


Height
Unit
Width
Depth
220042
7001200
1100
1000
900
200037
180032
160028
150023
Standard Rack
AD-R103
  • Model Name: AD-R103
  • 19 '' inch standard design keeps all equipment compatible



HeightUnitWidthDepth
2200457001200
900
750
200040
180036
160031
150027
